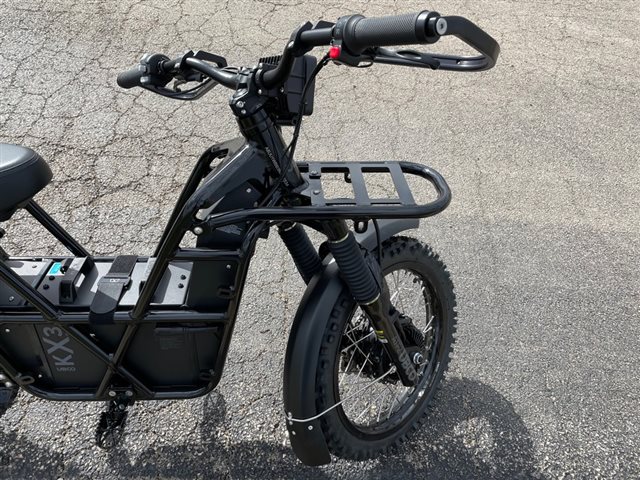

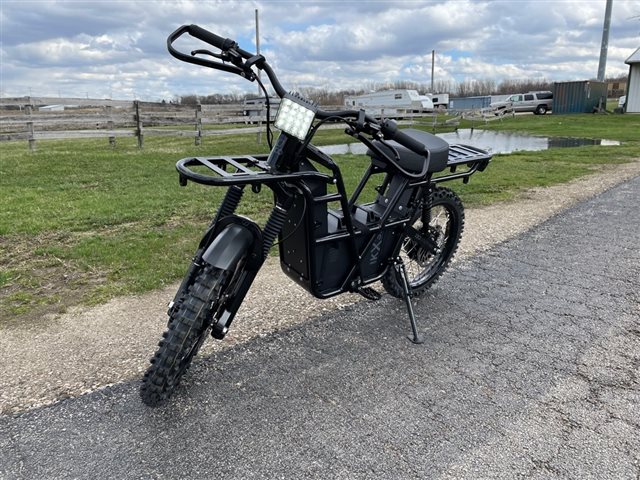

2022 UBCO 2X2 WORK BIKE 3.1 kWh HEAVY DUTY  Featured

VERY FUN 2X2 ELECTRIC BIKE WILL GO ANYWHERE !

USE IT FOR WORK OR PLAY

2 WHEEL DRIVE

ON SALE ! $5999 NO FREIGHT OR SETUP CHARGES

DIMENSIONS

Weight excl. power supply: 50.7kg | 111.6lbs
+ 2.1kWh battery: 63.7kg | 140.2lbs
+ 3.1kWh battery: 68.7kg | 151.2lbs
Height: 1,040mm | 41”
Seat height: 815mm | 32”
Width (handlebars): 820mm | 32.3”
Length: 1,820mm | 72”
Wheelbase: 1215mm | 47.8”

PERFORMANCE

Max speed: 50km/h | 30mph (45km/h EU). High torque geared drivetrain. Wheelbase: 1215mm | 47.8”

DRIVE TRAIN

All wheel drive with 2 x 1kw Flux² motors: Brushless DC air cooled. High durability planetary geared system. Fully splined gear interfaces. Sealed bearings. Active heat management. Active venting for residual moisture.

BRAKES

UBCO Quadratic² brake system: Hydraulic & regenerative brakes operate together. Active regenerative braking (brake activated): Independent front and rear brake control. Passive regenerative braking (off throttle). DOT approved hydraulic brakes. 203 x 2.3mm rotors. DOT approved Dash 3 brake lines.

WHEELS

9ga stainless steel spokes.
Tangential double-crossed lacing pattern. 17×1.85” aluminum rims (DOT compliant). 17×2.75” off-road knobbly tires.

STRUCTURE

Payload (incl. rider): 150kg | 330lbs
Super X step through frame: 7027 alloy. Front and rear racks standard. 19 drop forged attachment lugs on sub frame & rack. Dual kickstands (stand bike on either side).

SUSPENSION

UBCO ATFZ 130mm front suspension: Tapered chromoly steerer, chrome steel stanchions, alloy lower (corrosion resistant). Coil spring with hydraulic dampener. Preload & rebound adjustment.
UBCO ATF 120mm rear suspension: Coil over spring with hydraulic dampener. Preload & rebound adjustment.

USER CONTROLS

Fully electronic throttle control. Handlebar mounted momentary switch control for horn. Keyless fob operation utilises code hopping technology, hard to clone or hot wire. Kill switch can be programmed for on/off.

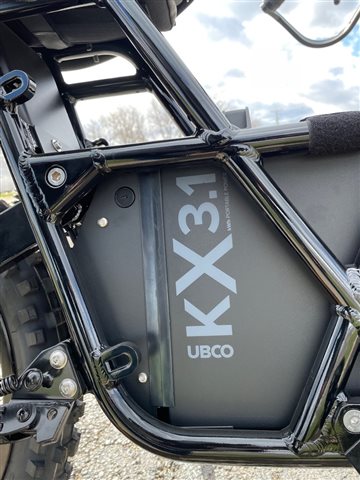

POWER SUPPLY

Match the capacity to your needs: 2.1kWh or 3.1kWh.
UBCO dual safety system:
Active Safety: UBCO ‘Scotty’ battery management system (BMS). Real time performance and safety monitoring.
Passive Safety: IP66 rated sealed alloy enclosure. Vented enclosure with venting pathways. 3400 mAh high safety factor INR (LiNiMnCoO₂) 18650 lithium ion cells. Designed for disassembly at end of life.

COMMUNICATION

Cerebro² vehicle management system (VMS): Integrates all electronic and electrical functions of the vehicle. Provides control and updates with Bluetooth 5.0. Vented waterproof enclosure with sealed automotive connectors. Isolated CAN bus for easier integration of future CAN devices. CAN communication with power supply. Support for optional UBCO ‘Communicator’ telematic control unit for fleets.

VEHICLE CLASS

WMC PIN coded off road vehicle.
NOT road registrable:
EU: CE Compliant for off-road use in Europe. Can be registered as a farm/work vehicle in some European jurisdictions.
AU: RVCS approved for off-road use in Australia. Can be approved for a conditional registration for farm use.
NZ: Compliant for off-road use in NZ.

CHARGING

10amp alloy fast charger. Charger detect disables bike when charging.
